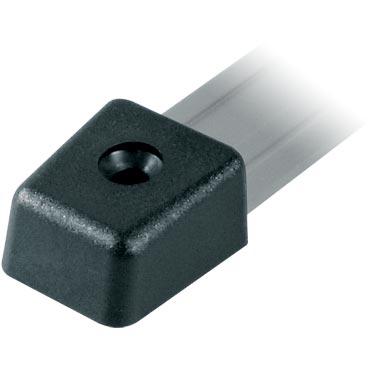

Ronstan Series 19 End Cap

Item #

RC11980

Usually ships within 1-3 days

Product Description

Ronstan Series 19 End Cap

Features

Length - 1 3/16 in.

Width - 1 in.

Weight - 0.2 oz.

Product Information

  • Track Fastenings - 5mm (3/16"), countersunk head fasteners at 100mm (3.937") centers.

  • Stop Holes - at 50mm (1.969") centers.

    Minimum Curve Radius

  • For 50mm (1 31/32") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59").

  • For 57mm (2 1/4") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59").

  • For 70mm (2 3/4") car. Min horizontal 'A' curve radius = 2500mm (99"). Min horizontal 'B' curve radius = 3000mm (118").

  • For 85mm (3 11/32") car. Min horizontal 'A' curve radius = 3500mm (138"). Min horizontal 'B' curve radius = 4500mm (177").

  • For 100mm (3 15/16") car. Min horizontal 'A' curve radius = 5000mm (197"). Min horizontal 'B' curve radius = 5500mm (217").

  • For 148mm (5 27/32") car. Min horizontal 'A' curve radius = 11000mm (433"). Min horizontal 'B' curve radius = 15000mm (591").

    Applications

  • Dinghy and catamaran mainsheet traveler and jib lead sheeting systems

  • Mainsheet systems on sports boats and keel boats to 7m (23ft)

    Materials

  • DelrinR
