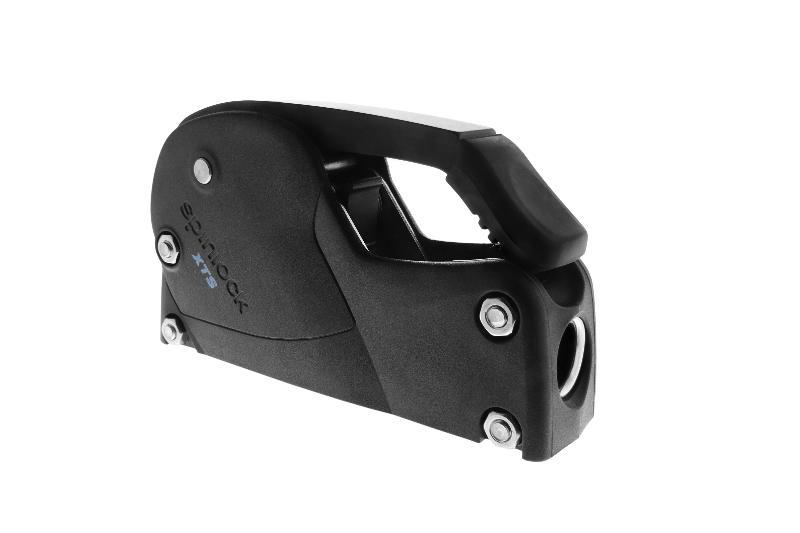

Spinlock XTS Ceramic Cam & Base Single Clutch 5/16" to 9/16"

Item #

XTS0814/1C

Usually ships within 1-3 days

Product Description

Spinlock XTS Ceramic Cam & Base Single Clutch 5/16" to 9/16"

Specifications:

Rope Range - 8mm - 14mm (5/16" - 9/16")

Load - 500kg - 1000kg (1103lb - 2200lb)

Max SWL - 1000kg (2200lb)

Weight - 0.514kg (1.13lb)

Specified as standard on production yachts worldwide and the choice of racing yachts inshore and offshore

Features and Benefits:

  • Mid to higher load rope holding

  • Reliable all around performance

  • Choose XTS0610 for best performance on smaller diameter lines

  • Choose XTS0814 for best performance across the rope range

  • Ceramic Coated CAM and Base available for consistent holding & performance with modern performance lines

  • Extruded alloy handle with soft end grip

  • Secure handle locking in open and closed position

  • Easy access to fasteners

  • Handle labels supplied

  • Click Here for Installation & Usage Guide

    Click Here for XTS Drill Template

    Click Here for XTS Side Mounting Drill Template
