Product Description

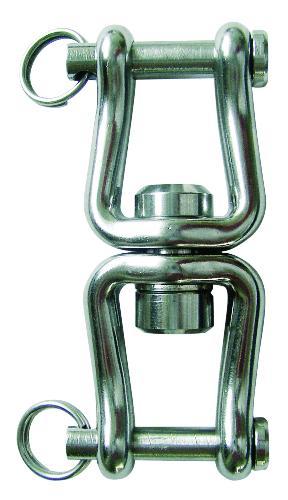

Tylaska 5 1/8" T20 Clevis/Clevis Bail Swivel
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T20 Clevis Bail/Clevis Bail Swivel
Safe Working Load(lb.) - 10,000 (4,540kg)
Breaking Strength(lb.) - 20,000 (9,070kg)
Weight(oz.) - 17.1

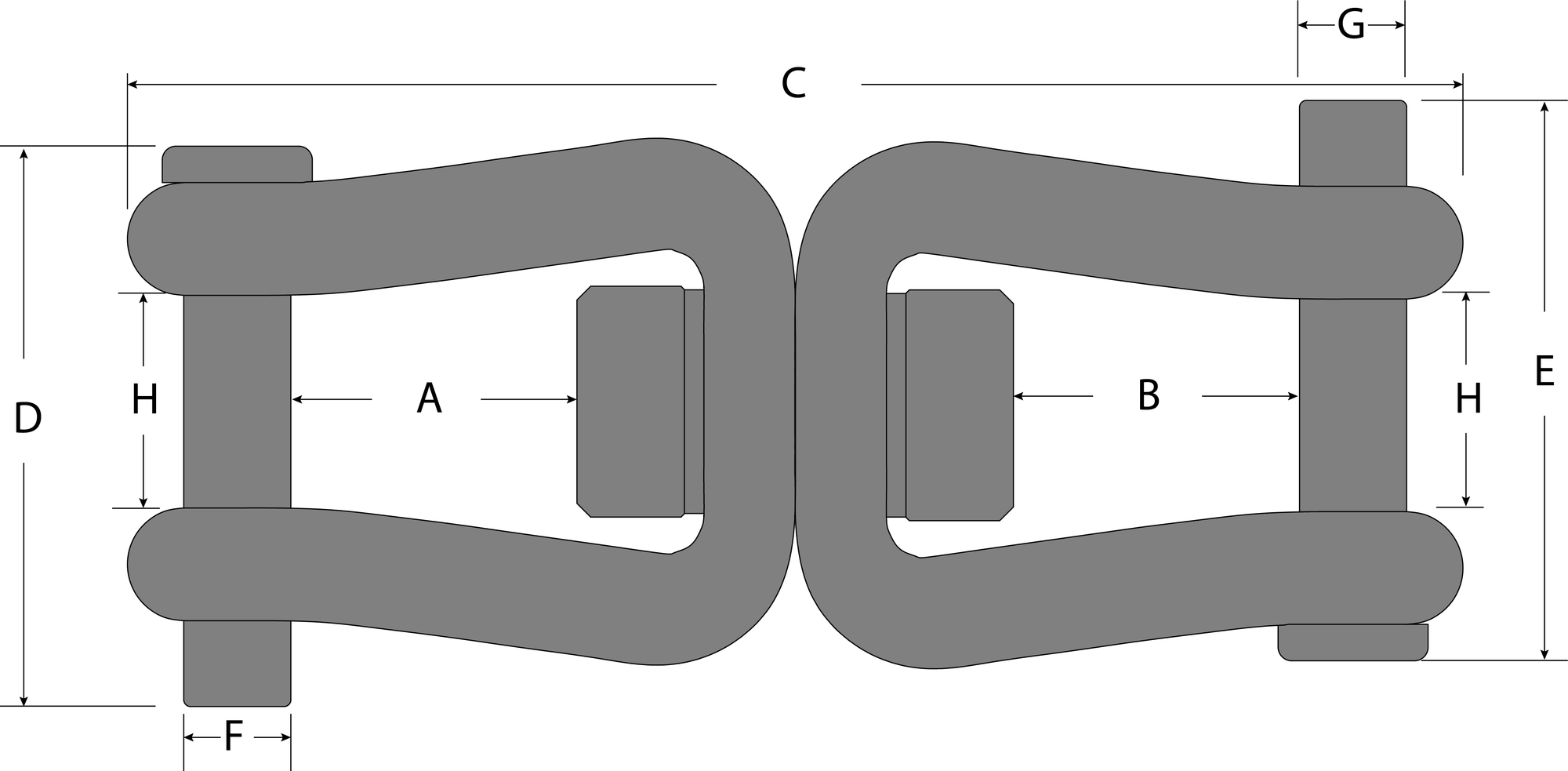

Dimensions
A(in.) - 1.13" (28.7mm)
B(in.) - 1.13" (28.7mm)
C(in.) - 5.04" (128mm)
D(in.) - 2.16" (54.9mm)
E(in.) - 2.16" (54.9mm)
F(in.) - 0.43" (10.9mm)
G(in.) - 0.43" (10.9mm)
H(in.) - 0.84" (21.3mm)
