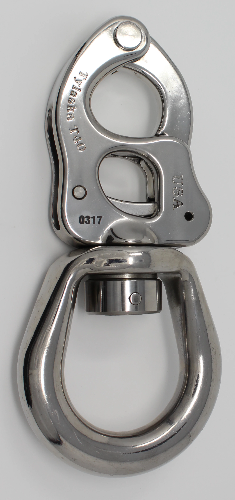

Tylaska T40 Large Bail Snap Shackle

Tylaska T40 Large Bail Snap Shackle

Tylaska T40 Snap Shackles are designed for massive sailboats or for towing or individual applications. With a breaking strength of 40,000 pounds, this shackle can handle sail loads on the largest of sailboats. They can be opened using either a trigger or lanyard. A lanyard allows for remote operation - ideal for towing applications. The locking pin provides extra security from accidental release.

Specifications

Shackle Type - T40 Large Bail

Safe Working Load(lb.) - 20,000 (9,070kg)

Breaking Strength(lb.) - 40,000 (18,140kg)

Boat Size(ft.) - 100'+

Weight(lb.) - 6.8lbs (3.08kg)

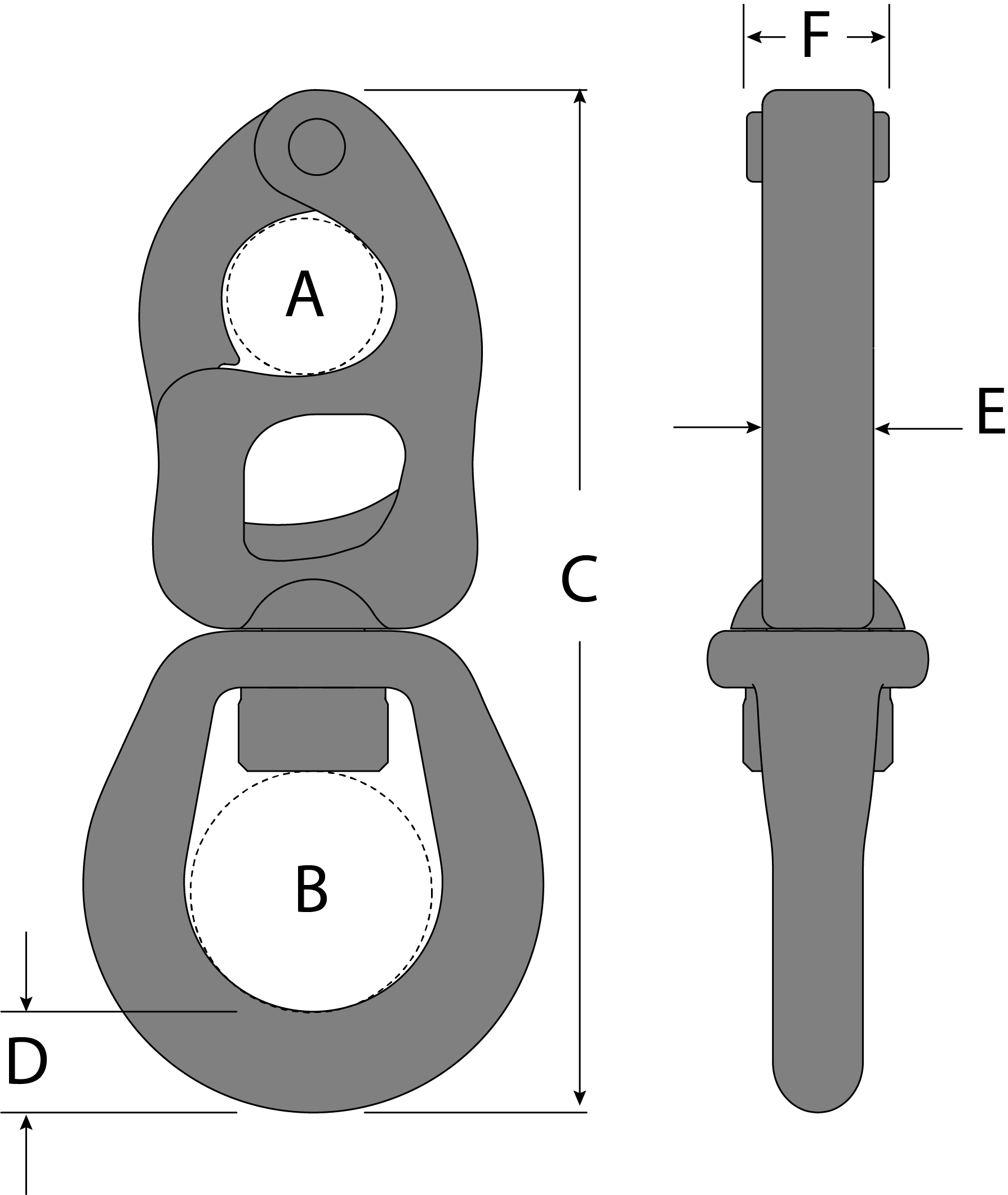

Dimensions

A(in.) - 1.75" (44.5mm)

B(in.) - 2.67" (67.8mm)

C(in.) - 10.62" (269.7mm)

D(in.) - 1.02" (25.9mm)

E(in.) - 1.12" (25.9mm)

F(in.) - 1.39" (35.3mm)
