Schaefer Stainless Fiddle Block Max Line 5/8" (16mm)

Item #

10-45

Usually ships within 1-3 days

Product Description

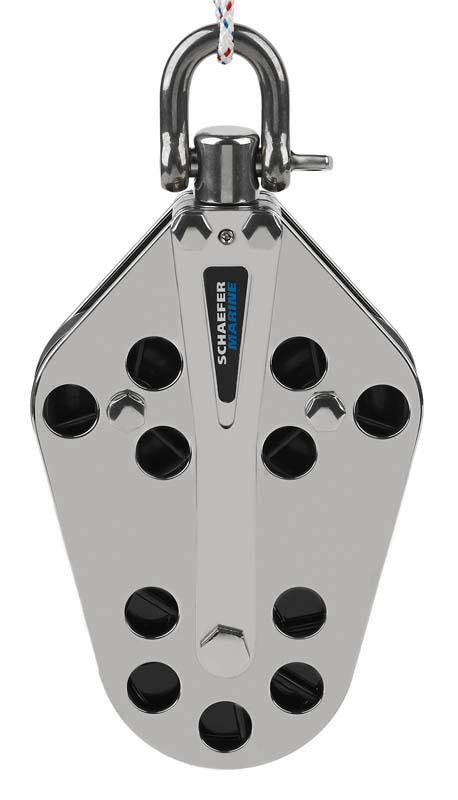

Schaefer Stainless Fiddle Block Max Line 5/8" (16mm)

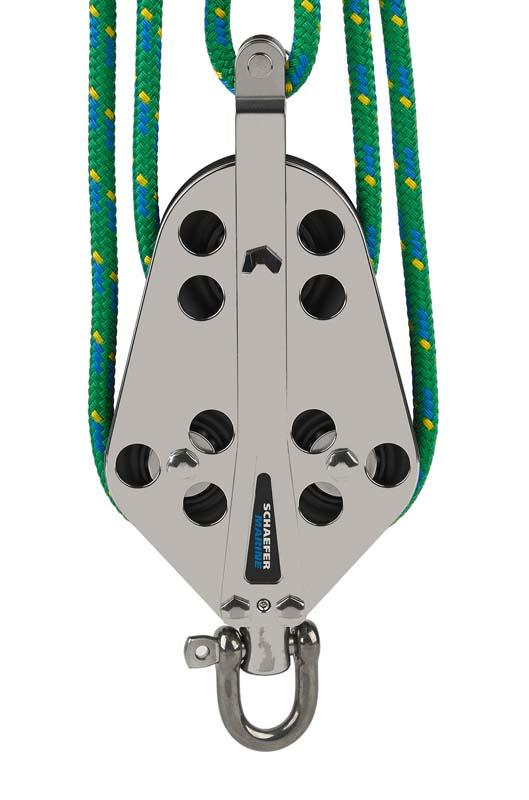

10 Series Fiddle Block with Stainless Steel cheeks. Works with 10-55 for a 4:1 purchase. Delrin(tm) sheaves run on Nomex(tm)/Teflon(tm) bearings for low-friction and high safe working loads. Unique design features a single top sheave and two in-line sheaves to spread the load reducing friction and chafe. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Bolted construction allows for easy maintenance.

Specifications:

  • Upper Sheave Dia.: 3 1/4 in. (83 mm)

  • Lower Sheave Dia.: 2 3/8 in. (60 mm)

  • Sheave Width: 3/16 in. (21 mm)

  • Pin Dia.: 3/8 in. (10 mm)

  • Thickness: 1 7/32 in. (31 mm)

  • Width: 4 13/16 in. (122 mm)

  • Length: 9 1/4 in. (235 mm)

  • SWL: 3750 lbs. (1750 kg)

  • Weight: 3 lbs. 1 oz. (1.39 kg)

  • Max Line: 5/8 in. (16 mm)

  • Max Wire: 1/4 in. (6 mm)
