Product Description

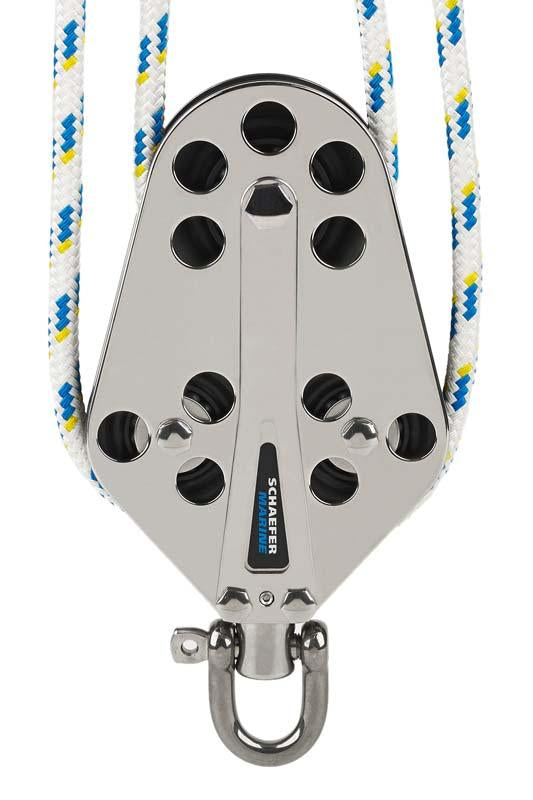

Schaefer Stainless Fiddle Block w/UC Sheave Max Line 5/8" (16mm)
10 Series Fiddle Block with Stainless Steel cheeks and Aluminum "universal circuit" ball bearing sheaves. Works with 10-55-uc for a powerful 4:1 system. Aluminum sheaves run on Delrin(tm) ball bearings for a very strong yet low-friction sheave. Unique single top sheave and two in-line sheaves spread the load reducing friction and chafe. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Bolted construction allows for easy maintenance.
Specifications:
Upper Sheave Dia.: 3 1/4 in. (83 mm)
Lower Sheave Dia.: 2 3/8 in. (60 mm)
Sheave Width: 13/16 in. (21 mm)
Pin Dia.: 3/8 in. (10 mm)
Thickness: 1 7/32 in. (31 mm)
Width: 4 13/16 in. (122 mm)
Length: 9 1/4 in. (235 mm)
SWL: 3750 lbs. (1750 kg)
Weight: 3 lbs. 1 oz. (1.39 kg)
Max Line: 5/8 in. (16 mm)
Max Wire: 1/4 in. (6 mm)
