Product Description

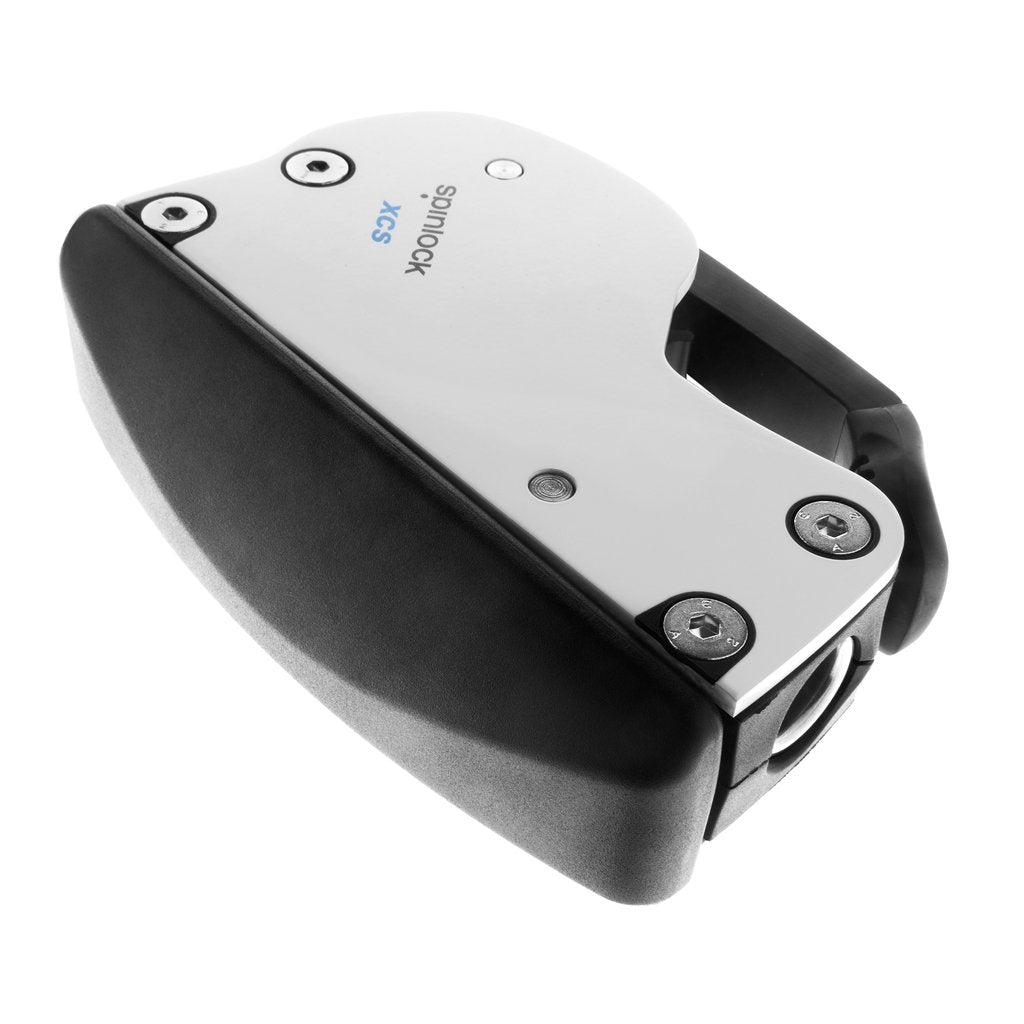

Spinlock XCS Horizontal Single Clutch 5/16" to 1/2" (Starboard) w/Lock-up Cam
Side mounting is usually the neatest solution for spars, side decks and coamings
Cam fitted with special lock open feature. When lock is engaged, the line is able to fun freely in both directions, with the handle closed, until normal clutch function is needed
Specifications:
Rope Range - 6mm - 10mm (1/4" - 3/8")
Load - 500kg - 700kg (1103lb - 1543lb)
Max SWL - 700kg (1543lb)
Weight - 0.760kg (1.68lb)
Specified as standard on production yachts worldwide and the choice of racing yachts inshore and offshore
Features and Benefits:
Aluminum sides for sustained higher load operation
Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
Mid to higher load rope holding
Reliable all around performance
Choose XCS0610 for best performance on smaller diameter lines
Choose XCS0814 for best performance across the rope range
Ceramic Coated CAM and Base available for consistent holding & performance with modern performance lines
Extruded alloy handle with soft end grip
Secure handle locking in open and closed position
Easy access to fasteners
Handle labels supplied
